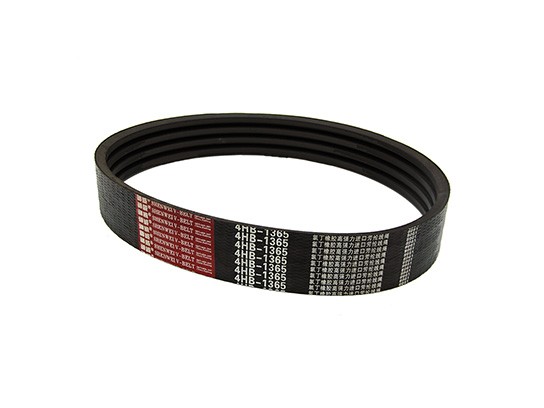

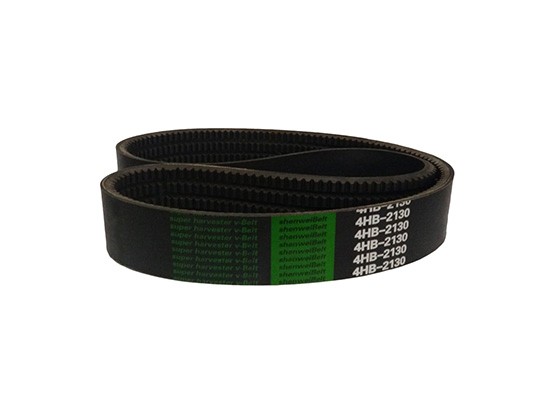

Banded Classical V-Belt

Banded Classical V-Belt is specially designed for industrial drives.
Available Types: AJ, BJ, CJ, RAX, RBX, RCX
Standard: ISO 4184 / BS 3790
Available Grades: Normal
Other Names: Banded Wrapped V-Belt, Banded Belt, Joined V-Belt
Send E-mailGet Price

Cross-Sectional Sizes:

Section Top Width(mm) Thickness(mm) Angle(Degree)
AJ 13.0 10.0 40
BJ 17.0 13.0 40
CJ 22.0 16.0 40
RAX 13.0 10.0 40
RBX 17.0 13.0 40
RCX 22.0 16.0 40



Features:

  • Enhanced power transmission capacity up to 25%;
    Lesser number of belts required as compared to multiple single-belt drive;
    High adhesion strength between tie band and the belts;
    Eliminates chance of a mismatch in the length, as observed in multiple single-Belt drive;
    Temperature range: -18ºC to +80ºC;
    Antistatic, oil and heat resistant.

Application:

  • Vertical shaft drives, agricultural drives, stone crushers, compressors, generator sets etc.
