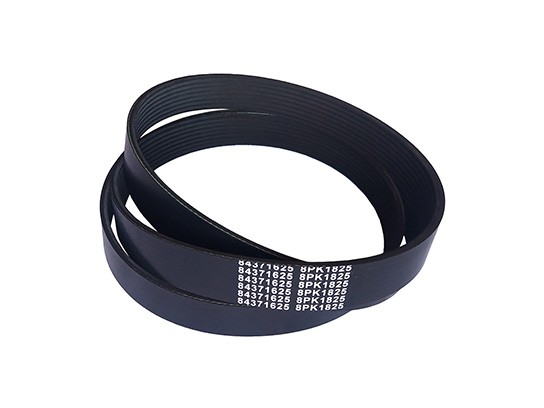

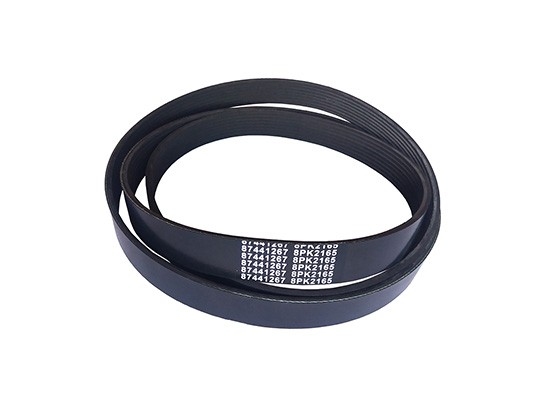

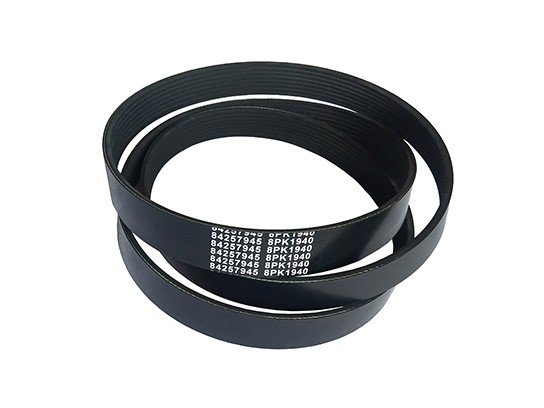

Ribbed V-belt/Poly V-belts

SHENWEI Agriculture Ribbed Belt are specially designed for combine harvester fan drives.
Available Types: PH, PJ, PK, PL, PM
Standard: ISO 9981 / RMA IP-26
Available Grades: Normal, -K (Kevlar)
Other Names: Multiple V-ribbed belt, Ribbed belt
Send E-mailGet Price

Cross-Sectional Sizes:

Section Thickness(mm) Rib Pitch(mm) Number of ribs(N)
PH 2.9 1.60 2 to 177
PL 3.8 2.34 2 to 120
PK 4.5 3.56 2 to 80
PL 7.6 4.70 2 to 60
PM 13.3 9.40 2 to 30



Features:

  • Oil resistant & antistatic
    High power transmission capacity
    Temperature range: -25℃ to +100 ℃
    Maximum belt linear speed up to 50m/s
    Highly flexible, noise free & smooth running
    Can be used for speed ratios up to 1:30
    ATEX certified FRAS Belts are also available

Application:

  • SHENWEI Ribbed Belt are specially designed for crude oil pumps, spreaders, seeding machines, vegetable crushers, household appliances, washing machines, dryers, machine tools, grinders, etc.
