Banded Narrow V-Belt-Classical wrapped V-belt

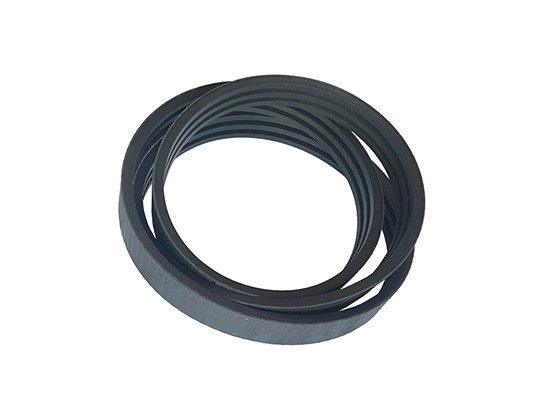

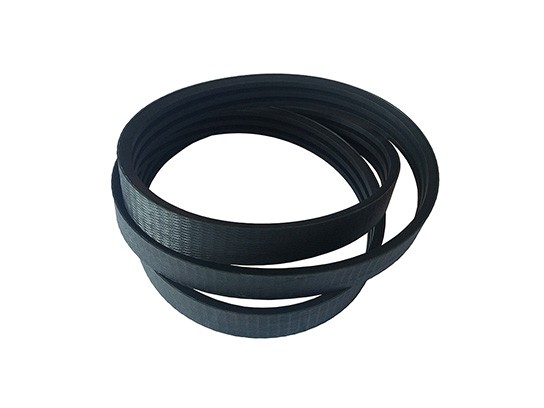

Banded Narrow V-Belt

Banded Narrow V-Belt is specially designed for industrial drives.
Available Types: HSPA/HXPA, HSPB/HXPB, HSPC/HXPC, H3V/H3VX, H5V/H5VX, H8V/H8VX
Standard: ISO 4184 / BS 3790
Available Grades: Normal

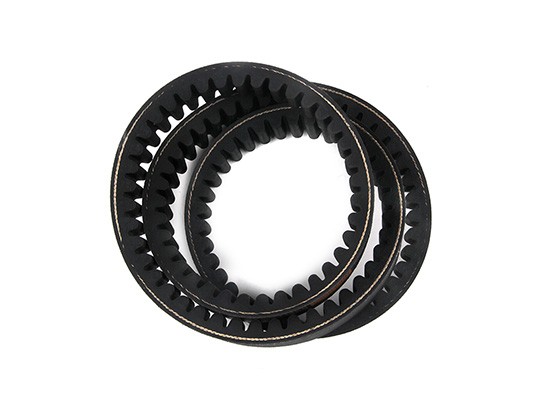

Other Names: Joined Narrow V-Belt, Banded Narrow Cogged V-Belt

Send E-mail Get Price

Cross-Sectional Sizes:

Section	Top Width(mm)	Thickness(mm)	Angle(Degree)
HSPA/HXPA	10.0	10.0	40
HSPB/HXPB	17.0	16.0	40
HSPC/HXPC	22.0	20.0	40
H3V/H3VX	9.7	10.0	40
H5V/H5VX	15.8	16.0	40
H8V/H8VX	25.4	25.0	40

Features:

Excellent heat-resistance,oil-proof,wearing resistance;
Enhanced power transmission capacity;
Resists hardening and glazing;
High horsepower ratings;
Smooth running;
Longer belt life.

Application:

Fit for drives with severe vibrations, vertical shaft drives, v-flat drives, agricultural drives, stone crushers, heavy duty compressors, generator sets, pumps, cold forging machines & mining equipment.
