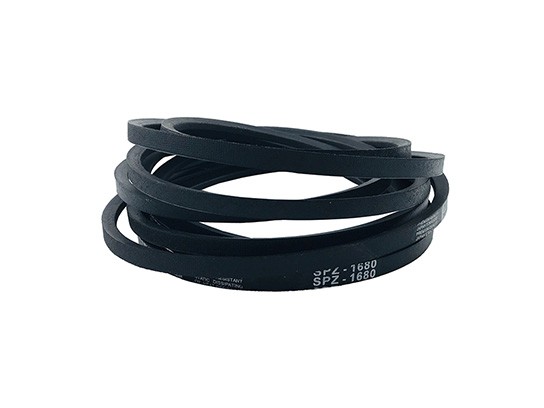

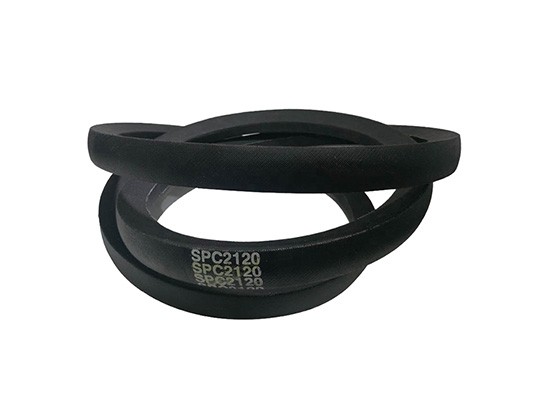

Narrow Wrapped V-Belt

Narrow Wrapped V-Belt is specially designed for heavy-duty drives.
Available Types: SPZ, SPA, SPB, SPC, 3V, 5V, 8V
Standard: ISO 4184 / BS 3790
Available Grades: Normal
Other Names: Wedge wrapped v-belt
Send E-mailGet Price

Cross-Sectional Sizes:

Section Top Width(mm) Thickness(mm) Angle(Degree)
SPZ 10.0 8.0 40
SPA 13.0 10.0 40
SPB 17.0 14.0 40
SPC 22.0 18.0 40
3V 9.7 8.0 40
5V 15.8 14.0 40
8V 25.4 23.0 40



Features:

  • High anti-heat, anti-oil and anti-wearing;
    Temperature resistance from -35°C to +80°C;
    Extremely small pulley diameters;
    High lateral stiffness;
    Strong durability;
    Prevent the generation of the static and keep safe use.

Application:

  • Industrial drives such as pumps, generators, ball-mills, crushers, compressors etc.
