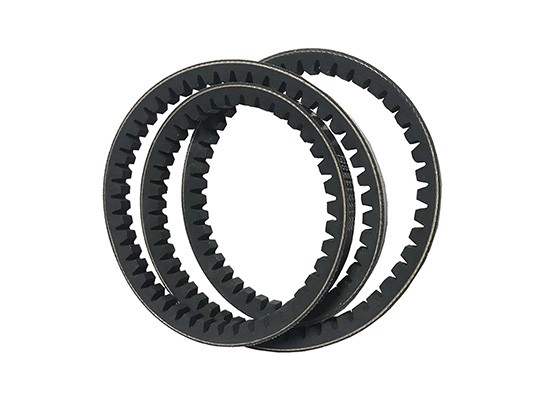

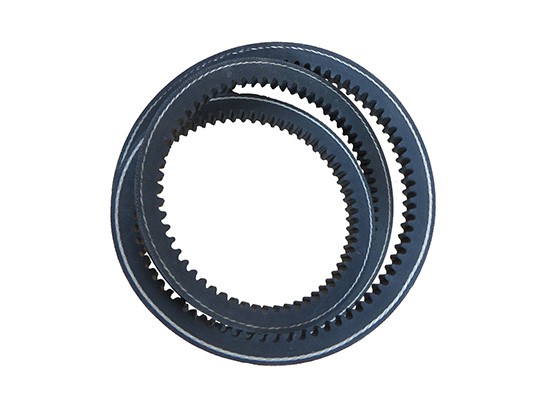

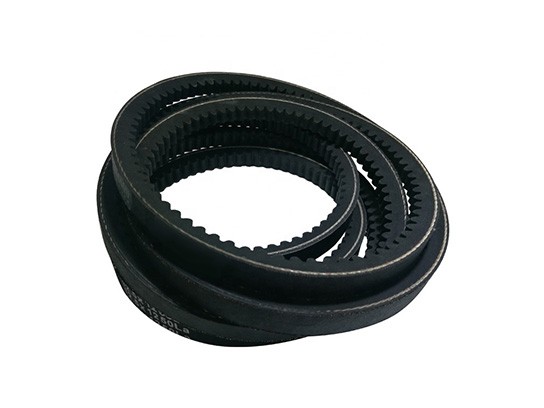

Narrow Cogged V-Belt
- Narrow Cogged V-Belt is specially designed for industrial drives.
Available Types: XPZ, XPA, XPB, XPC, 3VX, 5VX, 8VX
Standard: ISO 4184 / BS 3790
Available Grades: EPDM
Other Names: Farm belt, Harvester belt
Cross-Sectional Sizes:
| Section | Top Width(mm) | Thickness(mm) | Angle(Degree) |
| XPZ | 10.0 | 8.0 | 40 |
| XPA | 13.0 | 10.0 | 40 |
| XPB | 17.0 | 14.0 | 40 |
| XPC | 22.0 | 18.0 | 40 |
| 3VX | 9.7 | 8.0 | 40 |
| 5VX | 15.8 | 14.0 | 40 |
| 8VX | 25.4 | 23.0 | 40 |
Features:
-
Oil resistant & antistatic;
Maximum belt linear speed up to 30 m/s;
Higher power transmission capacity than wrapped belt;
Superior transverse stiffness & high wear resistance;
Suitable for drives with small pulley diameters, high ambient temperature & speeds;
Temperature Range: -25ºC to +100ºC;
Application:
- Drives with small pulley diameters, high ambient temperature & speeds, such as general industrial and engineering drives.
